Cable type

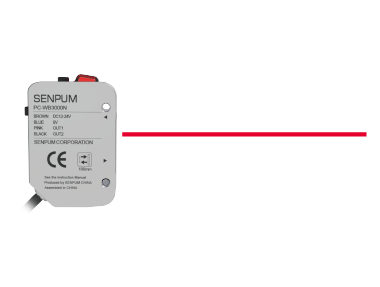

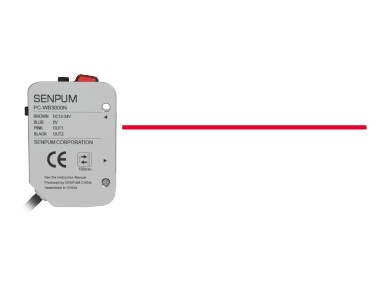

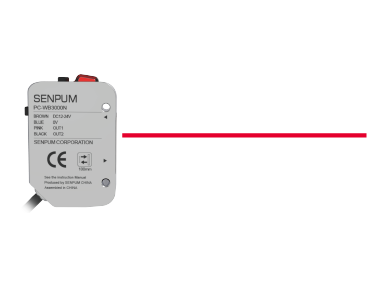

Type Appearance Detection distance(mm) Spot dimension Output type Model White non-glossy cardboard Black non-glossy cardboard Standard type
MEGA: 0~3000
FINE: 0~1000
HSPD: 0~700 MEGA: 7~800
FINE: 7~350
HSPD: 7~200 Aprrox.Ф2mm(at 1000mm) NPN PC-WB3000N PNP PC-WB3000P Small spot type MEGA: 0~700
FINE: 0~300
HSPD: 0~200 MEGA: 7~800
FINE: 7~350
HSPD: 7~200 Aprrox.Ф0.5mm(at 100mm) NPN PC-WB700N PNP PC-WB700P Line spot type MEGA: 0~3000
FINE: 0~1000
HSPD: 0~700 MEGA: 7~800
FINE: 7~350
HSPD: 7~200 Aprrox.1.5*120mm(1000mm) NPN PC-WS3000N PNP PC-WS3000P
Relay type
| Type | Appearance | Detection distance(mm) | Spot dimension | Output type | Model | |
| White non-glossy cardboard | Black non-glossy cardboard | |||||
| Standard type |  | MEGA: 0~3000 FINE: 0~1000 HSPD: 0~700 | MEGA: 7~800 FINE: 7~350 HSPD: 7~200 | Aprrox.Ф2mm(at 1000mm) | NPN | PC-WB3000CAN |
| PNP | PC-WB3000CAP | |||||
| Small spot type | | MEGA: 0~700 FINE: 0~300 HSPD: 0~200 | MEGA: 7~800 FINE: 7~350 HSPD: 7~200 | Aprrox.Ф0.5mm(at 100mm) | NPN | PC-WB700CAN |
| PNP | PC-WB700CAP | |||||
| Line spot type | | MEGA: 0~3000 FINE: 0~1000 HSPD: 0~700 | MEGA: 7~800 FINE: 7~350 HSPD: 7~200 | Aprrox.1.5*120mm(1000mm) | NPN | PC-WS3000CAN |
| PNP | PC-WS3000CAP | |||||
