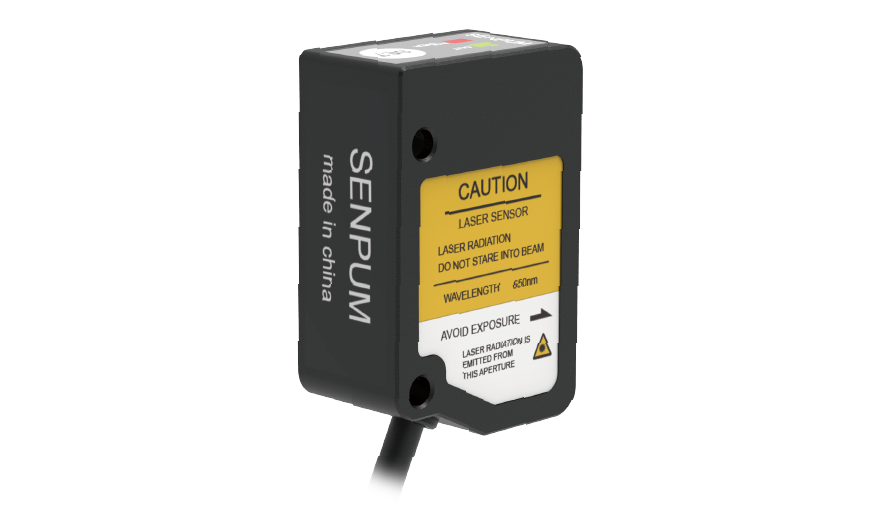

High Precision Digital Laser Sensor - LA-N Series

High Precision Digital Type- LA-N Series

Overview Products Lineup Specs Dimensions Model

Model	LA-NH4500	LA-NS3000	LA-NS7000L
Type	Retroreflective
Light source	Red laser (wavelength 640nm)	Red laser (wavelength 650nm)
Laser class	IEC/JIS(class1)
Emission spot size	Approx. Ф1.5mm (at a detecting distance of 1m)	Approx. 2 x 2 mm (at a distance of 500 mm or closer)	Approx. 2 x 10 mm (at a distance of 500 mm or closer)
Detection Distance(m)	H-SP ：2.5	H-SP ：-	H-SP ：-
	M-SP ：4	M-SP ：0.7	M-SP ：2.5
	L-SP ：6	L-SP ：2	L-SP：5
	SUPER ：7	SUPER ：3.5	SUPER：8
	ULTRA ：8	ULTRA ：5	ULTRA ：10
	MEGA ：10	MEGA ：6	MEGA ：12
Indicator light	Laser indicator: green LED Output indicator: two-color LED (red: ON; green: OFF) Level indicator: green x2,red x1 (shows 90-110% detection margin)
Ambient luminance	Incandescent : 10,000Ix or less ; Sunlight : 20,000lx or less
Ambient temperature	-10 to +50°C (no freezing)
Ambient humidity	35 to 85%RH (no condensation)
Vibration resistance	10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each in X, Y, and Z directions
Shock resistance	500 m/s² , 3 times each in X, Y, and Z directions
Material	Housing: polycarbonate; Lens cap: glass; Cable: PVC
Enclosure size (LWH mm)	37×23×12.2	43.1×19×13.2	43.1×19×13.2
Weight	Approx. 60g (including 2m cable)	Approx. 65g (including 2m cable)	Approx. 65g (including 2m cable)
Reflector	N-6L (standard equipment)

*1: LA-NS3000 and LA-NS7000L sensing heads do not have HIGH SPEED mode.
*2: Recommended mounting torque for sensing head is 0.16 - 0.22N.m .

Model	LA-NS350	LA-NS350L	LA-NT750
Type	Reflective type	Side-emitting reflective type	Reflective type
Light source	Red laser (wavelength 640nm)		Red laser (wavelength 640nm)
Laser class	IEC/JIS(class1)
Emission spot size	Approx. Ф2.0 mm	Approx. Ф2.0 mm	Approx. Ф1.5mm (at a detecting distance of 1m)
Detection Distance(m)	HSP ：150	HSP ：120	HSP ：100
	MSP ：200	MSP ：160	MSP ：150
	LSP ：300	LSP ：240	LSP：300
	SUPER ：400	SUPER ：360	SUPER：450
	ULTRA ：500	ULTRA ：400	ULTRA ：600
	MEGA ：600	MEGA ：480	MEGA ：750
Indicator light	Laser indicator: green LED Output indicator: two-color LED (red: ON; green: OFF) Level indicator: green x2,red x1 (shows 90-110% detection margin)
Ambient luminance	Incandescent : 10,000Ix or less ; Sunlight : 20,000lx or less
Ambient temperature	-10 to +50°C (no freezing)
Ambient humidity	35 to 85%RH (no condensation)
Vibration resistance	10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each in X, Y, and Z directions
Shock resistance	500 m/s² , 3 times each in X, Y, and Z directions
Material	Housing: polycarbonate; Lens cap: glass; Cable: PVC
Enclosure size (LWH mm)	31.2×13.1×6.4	37.7×13.1×6.4	37×23×12.2
Weight	Approx. 70g (including 2m cable)	Approx. 70g (including 2m cable)	Approx. 60g (including 2m cable)

*1: LA-NS3000 and LA-NS7000L sensing heads do not have HIGH SPEED mode.
*2: Recommended mounting torque for sensing head is 0.16 - 0.22N.m .

Type		Standard type
		Main module	Expansion module
Model	NPN	LA-N11N	LA-N12N
	PNP	LA-N11P	LA-N11P
	NPN/PNP	LA-N11	LA-N11
Control output		2 output
External input		1 input
Response time		80us(H-SP)/250us(M-SP)/500us(L-SP)/1ms(SUPER)/4ms(ULTRA)/16ms(MEGA)
Output switching		Light-ON/dark-ON switching
Timer function		Timer off/OFF delay/ON delay/One-shot
Output capability		Maximum load current: 100mA; residual voltage: less than 1V
Protection circuit		Reverse connection protection, output overcurrent protection and output surge protection
Power voltage		10-30VDC±10%, Ripple Voltage (P-P): 10% max .
Power consumption	NPN	720mW max (30mA max at 24V, 55mA max at 12V)
	PNP	720mW max (30mA max at 24V, 55mA max at 12V)
Number of modules that can be added		Up to 15 expansion modules can be added to 1 main module
Number of mutual interference prevention units		Maximum of 16 units
Ambient temperature		-10 to +50°C (no freezing)
Ambient humidity		35 to 85%RH ( no condensation)
Vibration resistance		10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each in X, Y, and Z directions
Shock resistance		500 m/s², 3 times each in the X, Y, and Z directions
Material		Polycarbonate
Enclosure size (LWH mm)		83.62 x 10.05 x 30.8
Weight		Approx. 70 g (including 2 m cable)
