| 检测范围 | 精度 型号 | 标准弹簧直线型 | 气缸型 |
| 12mm | 分辨率0.1μm 精度1μm | MT1-P12K | MT1-PA12K |
 | | ||
| 分辨率0.5μm 精度2μm | MT1-P12 | MT1-PA12 | |
| | |

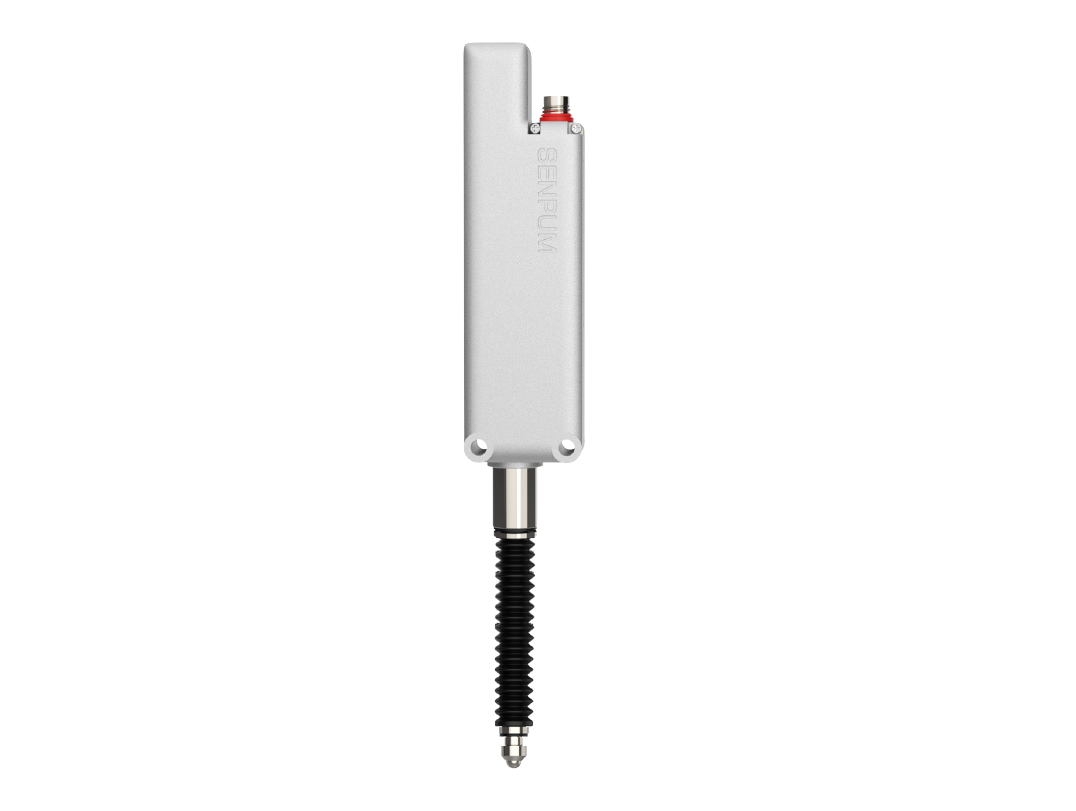

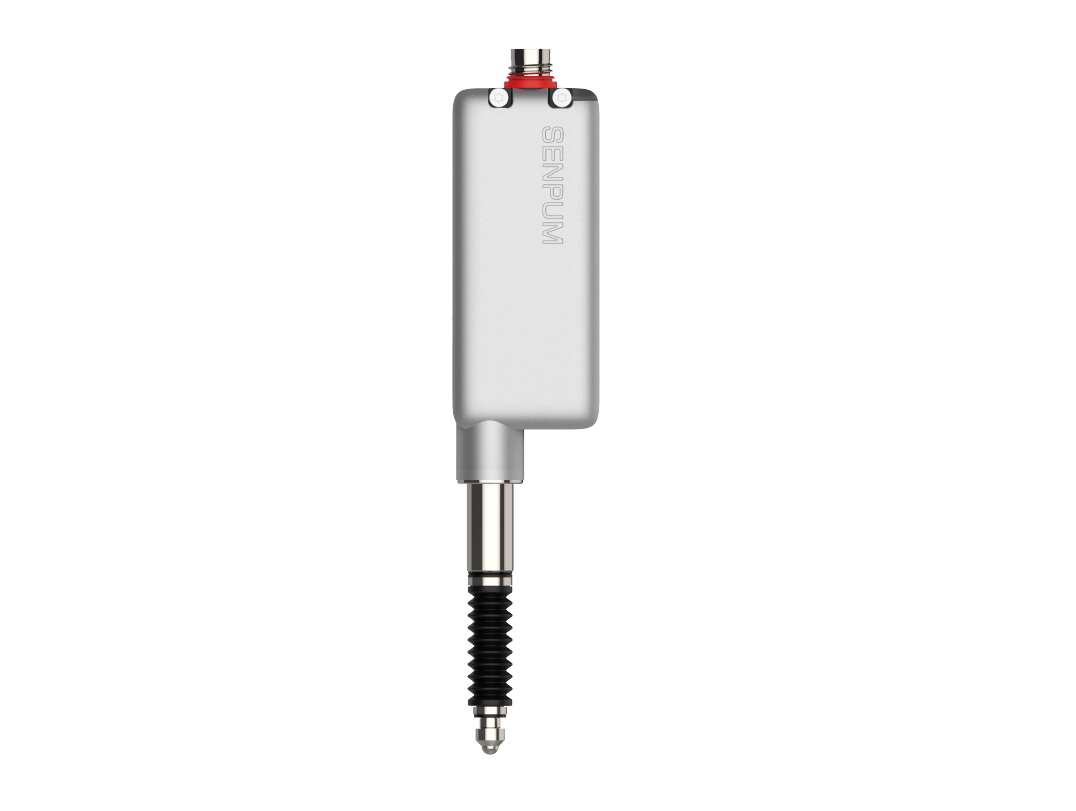

盒式感测头
| 检测范围 | 精度 型号 | 标准弹簧直线型 | 标准法兰型 | 气缸型 |
| 5mm | 分辨率0.1μm 精度1μm | MT1-H5K | - | - |
 | - | - | ||
| 分辨率0.5μm 精度2μm | MT1-H5 | - | - | |
| | - | - | ||
| 分辨率0.5μm 精度5μm | MT1-H5S | - | - | |
| | - | - | ||
| 12mm | 分辨率0.1μm 精度1μm | MT1-H12K | MT1-H12KF | MT1-A12K |
 | |  | ||
| 分辨率0.5μm 精度2μm | MT1-H12 | MT1-H12F | MT1-A12 | |
| | | | ||
| 分辨率0.5μm 精度5μm | MT1-H12S | - | MT1-A12S | |
| | - | | ||
| 22mm | 分辨率0.1μm 精度1μm | MT1-H22 | - | - |
 | - | - | ||
| 32mm | 分辨率0.5μm 精度2μm | MT1-H32 | - | MT1-A32 |
 | - |  | ||
| 50mm | 分辨率0.5μm 精度5μm | MT1-H50 | - | MT1-A50 |
 | - |  |
控制器
| 控制器种类 | 输出方式 | 型号 |
 | NPN | MT1-71AN |
| PNP | MT1-71AP | |

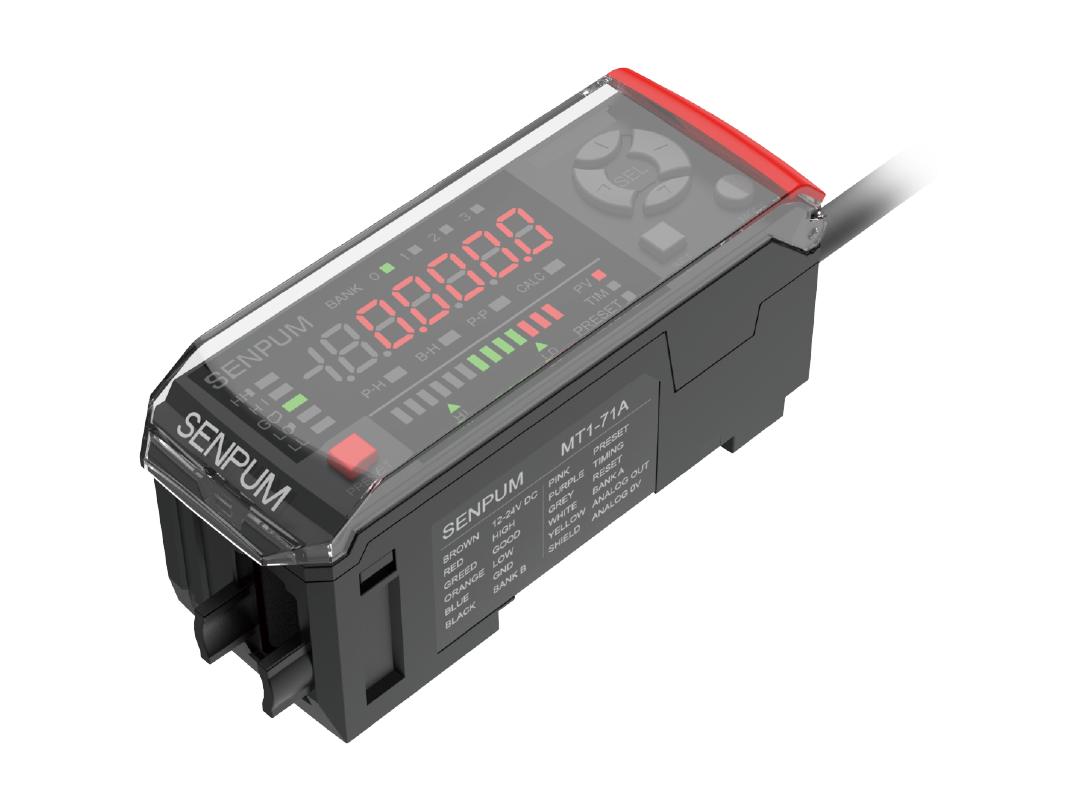

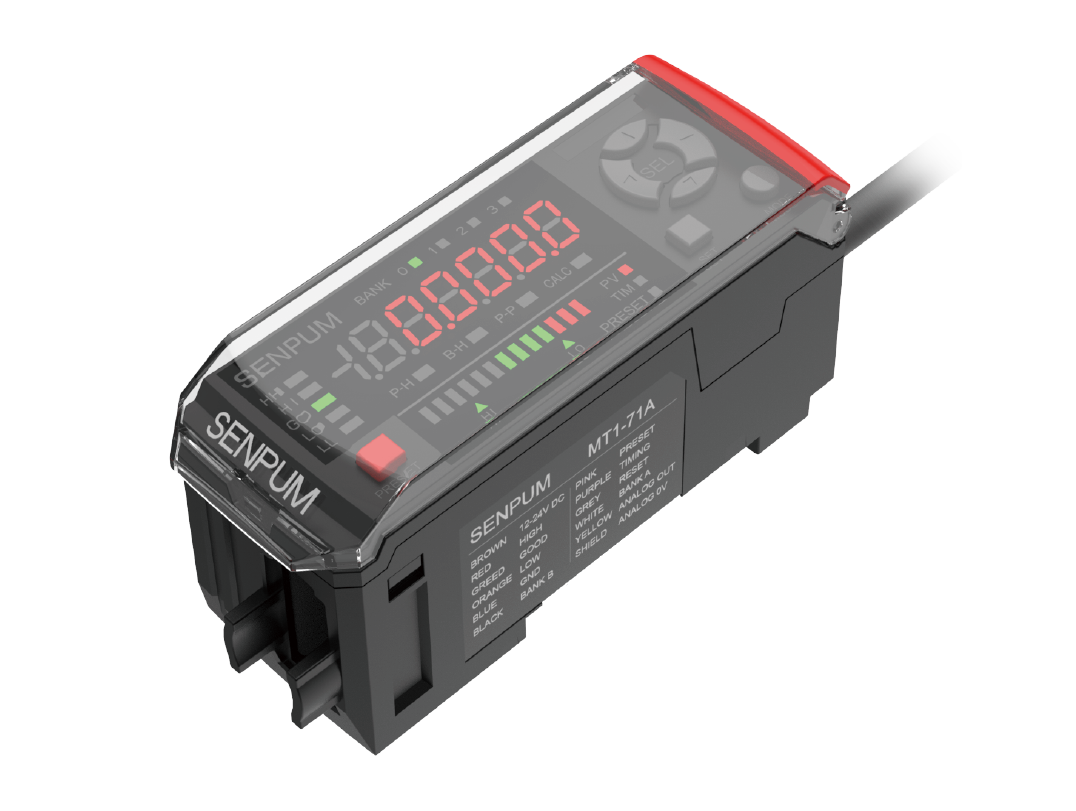

| NPN/PNP | MT1-71A | |
 | NPN | MT1-71AMN |
| PNP | MT1-71AMP | |
| NPN/PNP | MT1-71AM | |
 | NPN | MT1-72AN |
| PNP | MT1-72AP | |

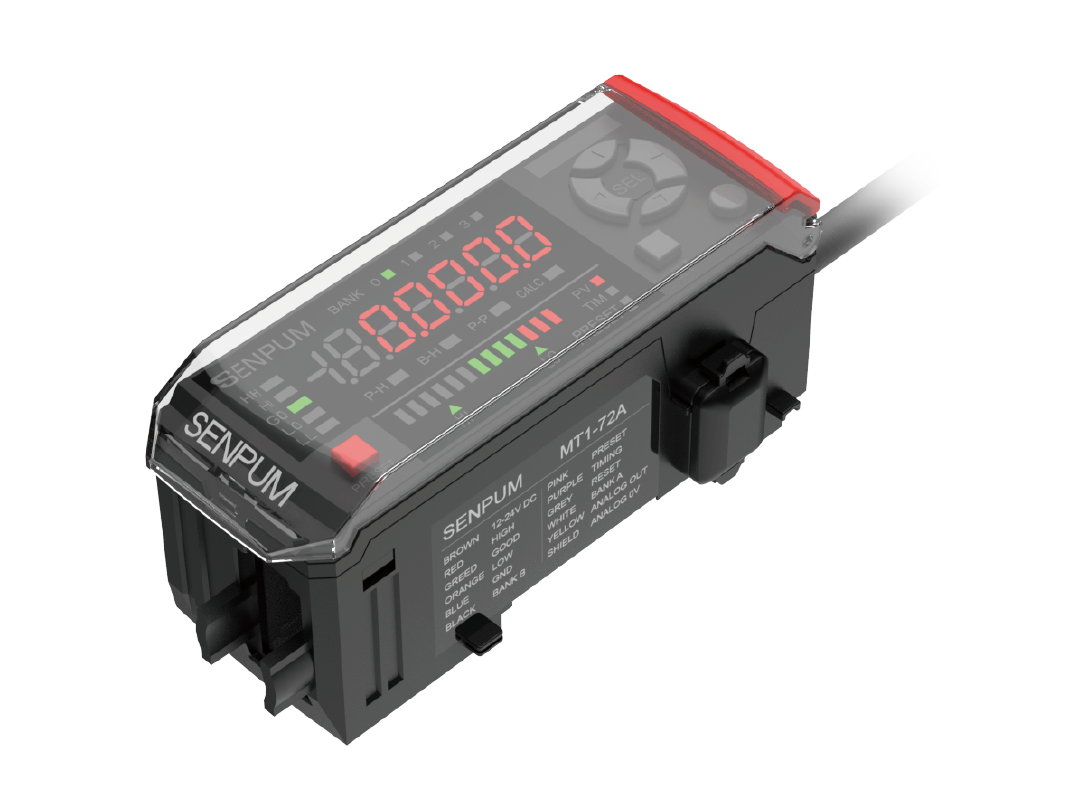

| NPN/PNP | MT1-72A |
